60Watt (KSUS60 Series)
Key Features:
●Light, extra slim, sleek, compact design
●Green power, full complies with CEC level V, MEPS V EUP2011
●High power density
●Extra safe design, have got their respective safety approvals
●Completed protect function
Key Applications:
It’s suitable for an extremely wide range of applications, including:
●Mobile Devices
●Laptop
●Printer
●Pos
●Set-top-box
●ADSL
●Hard disk drive
●Audio & Video product
●Household appliance

Input:
●Input Voltage:     90 to 264 VAC
●Frequency :         47-50/60-63hz
●Input   current :    1.5A (Max)
●Inrush current :    50A Max 120VAC at max Load
                                  100A Max 240VAC at max Load
●Leakage current : 0.25 mA Max

Output:
●Over voltage protection
●Over current protection
   at 110-200% of lo and Auto-recovery
●Electronic short circuit protection
●Operating temperature 0~40℃ Free convection
●Operating humidity 10-90% RH Non Condensing
●Sea level Non-operating temperature -20~ 80℃

Safety standards
●Information technology equipment
●IEC/EN 60950-1, UL 60950-1, CSA C22.2
  No. 60950-1-03,GB4943,K60950

Certificates and approvals:
● CB , GS , CE , UL , FCC ,PSE

EMI Emission:
●Radiation Test&Conduction Test :EN 55022/FCC Part 15
●Harmonic Test : EN 61000-3-2
●Flicker       Test : EN 61000-3-3

EMS immunity:
●ESD   Test:EN 61000-4-2
●RS     Test:EN 61000-4-3
●EFT    Test:EN 61000-4-4
●Surge Test:EN 61000-4-5
●CS      Test:EN 61000-4-6
●DIP     Test:EN 61000-4-11

Output Tables:
Product Tables :

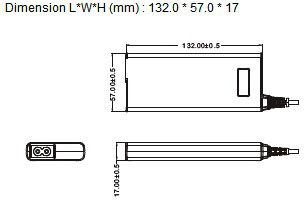

Machanical SPEC:

Packing & Shipping:
