12 Watt (KSAS012 Series Vertical type)
Key Features:
●Green power
●Full complies with DOE VI, ERP 2016 engery efficiency level VI
●EN60950/EN60065 AV ITE Safety Approvals
●Ambient Temp Range(0℃ to 40℃)
●Fixed frequency switching is mandatory
●ESD:air discharging  ±8KV, contact discharging ±4KV
●Reliability level of MTBF 50K hours @25℃
Key Applications:
It’s suitable for an extremely wide range of applications including:
●General I.T.E Use
●Set-top-box
●Audio&video product
●ADSL
●Mobile Devices
●Household appliance

Input:
●Input  Voltage :  90 to 264 VAC
●Frequency     :    47-50/60-63HZ
●Input   Current : 0.4A (Max)  100/240VAC
●Inrush Current : 60A Max  100VAC at max  Load
                               100A Max  240VAC at max  Load
●Leakage Current: 0.25mA Max

Output:
●Over voltage protection
●Over current protection
  at 110-250% of lo and Auto-recovery
●Electronic short circuit protection
●Operating temperature 0~40℃ Free convection
●Operating humidity 10-90% RH Non Condensing
●Sea level Non-operating temperature -20~ 80℃


Safety standards
●Information technology equipment
●IEC/EN 60950-1, UL 60950-1, CSA C22.2
   No. 60950-1-03, GB4943

Certificates and approvals:
 ●CB , GS , CE , TUV, UL , CCC , FCC,PSE,KC,C-TICK

EMI Emission:
●Radiation Test&Conduction Test:EN 55022/FCC Part 15 ●Harmonic Test: EN 61000-3-2 ●Flicker Test: EN 61000-3-3

EMS immunity:
●ESD   Test:EN 61000-4-2
●RS     Test:EN 61000-4-3
●EFT    Test:EN 61000-4-4
●Surge Test:EN 61000-4-5
●CS      Test:EN 61000-4-6
●DIP     Test:EN 61000-4-11

Output Tables:
Product Tables :

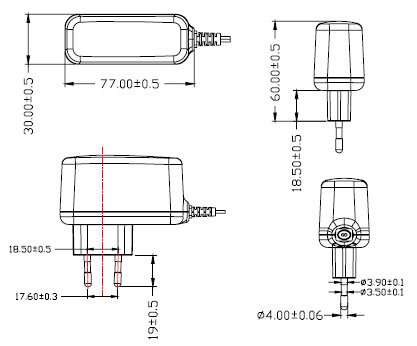

Machanical SPEC:

Packing & Shipping:
