80Watt (KSAFJ Series)
 |
Key Features:
●Light, extra slim, sleek, compact design
●Green power, full complies with CEC level V, MEPS V EUP2011
●High power density
●Extra safe design, have got their respective safety approvals
●Completed protect function
Key Applications:
It’s suitable for an extremely wide range of applications, including:
●Mobile Devices
●Laptop
●Printer
●Pos
●Set-top-box
●ADSL
●Hard disk drive
●Audio & Video product
●Household appliance
|
| |
|
Input:
●Input Voltage: 90 to 264 VAC
●Frequency : 47-50/60-63hz
●Input current : 1.5A (Max)
●Inrush current : 50A Max 120VAC at max Load
100A Max 240VAC at max Load
●Leakage current : 0.25 mA Max
Output:
●Over voltage protection
●Over current protection
at 110-200% of lo and Auto-recovery
●Electronic short circuit protection
●Operating temperature 0~40℃ Free convection
●Operating humidity 10-90% RH Non Condensing
●Sea level Non-operating temperature -20~ 80℃
Safety standards
●Information technology equipment
●IEC/EN 60950-1, UL 60950-1, CSA C22.2
No. 60950-1-03,GB4943,K60950
Certificates and approvals:
● CB , GS , CE , UL , FCC ,PSE
EMI Emission:
●Radiation Test&Conduction Test :EN 55022/FCC Part 15
●Harmonic Test : EN 61000-3-2
●Flicker Test : EN 61000-3-3
EMS immunity:
●ESD Test:EN 61000-4-2
●RS Test:EN 61000-4-3
●EFT Test:EN 61000-4-4
●Surge Test:EN 61000-4-5
●CS Test:EN 61000-4-6
●DIP Test:EN 61000-4-11
|

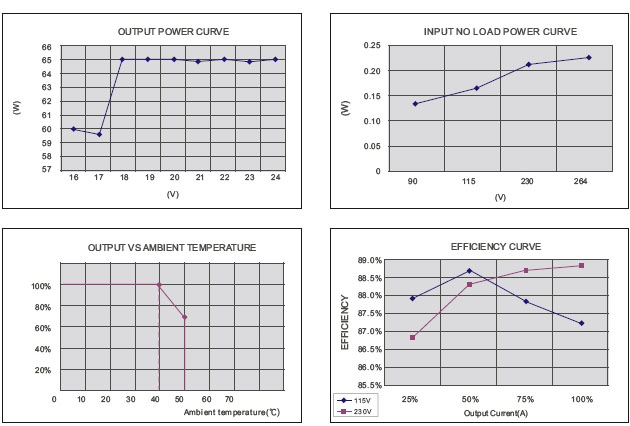

Output Tables:
|
Product Tables :
Machanical SPEC:
Packing & Shipping:
|
|
