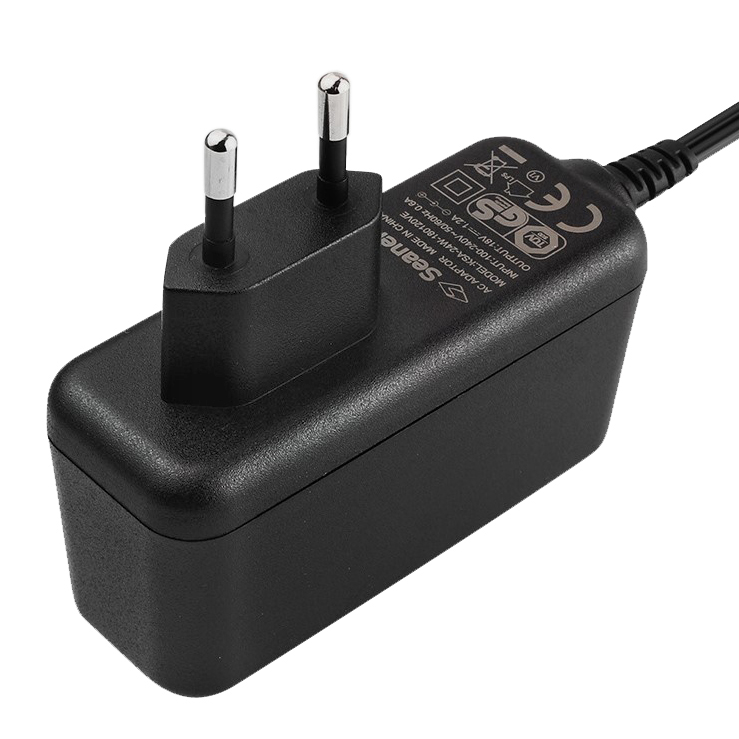

24 Watt (KSA-24W Series Vertical type)
Key Features:
●Compact and smooth design
●Efficiency meets DOE VI, COC Tire 2
●Extra safe design, have got their respective safety approvals
●High power density
●Completed protect function
Key Applications:
It’s suitable for an extremely wide range of applications, including:
●General I.T.E Use
●Set-top-box
●Audio&video product
●Netcom products
●Display
●Mobile hard disk
●Home appliance
●ADSL

Input:
●Rated input voltage: 100-240Vac
●Operating range: 90-264 Vac
●Rated input frequency:50/60Hz +/-3Hz
●Rated input current: 0.6A max
●Maximum input power: 29.1W
●Input current (no loading): <25mA
●Power consumption(no loading): Max 0.075W

Output:
●Output voltage: 9-24VDC
●Minimum load current: 0.01A
●Rating load current: 2.5A max
●Rating output power:24W max
●Ripple and noise: 150 mVp-p
●Load regulation: less than +/-5% at measured output load from 10% to 100% rated load
●Turn on delay time: 4000 mS at nominal input AC voltage and full load.
●Rise time: less than 30 mS to rise to within regulation limits for all DC outputs
●Hold up time: 10 mS minimum at nominal AC voltage and full load
●Output over-shoot: Less than 7% of nominal voltage value
●Over voltage protection
●Short circuit protection
●Over current protection


Environmental Requirements
●Operating Temperature: 0°C +40°C
●Non-Operating Temperature: -20°C +80°C
●Operating Humidity: 10%-90% (Non Condensing)
●Non-Operating Humidity: 10%-90% (Non Condensing)

Safety standards
●Information technology equipment
●IEC/EN 60950 62368
●UL 60950

Certificates and approvals:
●CE CB GS
●UL/CUL FCC
●RCM SAA

EMI Emission:
●Radiation Test & Conduction Test: EN 55032 / FCC part 15
●GB9254,GB17625.1

EMS immunity:
●Electrostatic Discharge Immunity: EN 55024, EN 61000-4-2
●Radiated Field Immunity: EN 55024, EN 61000-4-3
●Fast Transient Immunity: EN 55024, EN 61000-4-4
●Surge Immunity: EN 55024, EN 61000-4-5


Output Tables:
Product Tables :

Machanical SPEC:

Packing & Shipping:
