15 Watt (KSAS015 Series)
Key Features:
●Light, extra slim, sleek, compact design
●Green power
●Full complies with DOE VI, ERP 2016 engery efficiency level VI
●High power density
●Extra safe design, have got their respective safety approvals
●Completed protect function
Key Applications:
It’s suitable for an extremely wide range of applications including:
It’s suitable for an extremely wide range of applications, including:
●Mobile Devices
●Pos
●Set-top-box
●ADSL
●Hard disk drive
●Audio & Video product
●Household appliance

Input:
●Input Voltage :     90 to 264 VAC
●Frequency :          47-50/60-63HZ
●Input Current :     0.4A (Max)  100/240VAC
●Inrush Current :  50A Max  100VAC at max  Load
                                  60A Max  240VAC at max  Load
●Leakage Current: 0.25mA Max

Output:
●Over voltage protection
●Over current protection
   at 110-200% of lo and Auto-recovery
●Electronic short circuit protection
●Operating temperature 0~40℃ Free convection
●Operating humidity 10-80% RH Non Condensing
●Sea level Non-operating temperature -20~ 80℃

Safety standards
●Information technology equipment
●IEC/EN 60950-1, UL 60950-1, CSA C22.2
   No. 60950-1-03,GB4943

Certificates and approvals:
●CB , GS , CE , TUV, UL , CCC , FCC,PSE,KC,C-TICK

EMI Emission:
●Radiation Test&Conduction Test:EN 55022/FCC Part 15
●Harmonic Test: EN 61000-3-2
●Flicker Test: EN 61000-3-3

EMS immunity:
●ESD  Test:EN 61000-4-2
●RS     Test:EN 61000-4-3
●EFT    Test:EN 61000-4-4
●Surge Test:EN 61000-4-5
●CS      Test:EN 61000-4-6
●DIP     Test:EN 61000-4-11

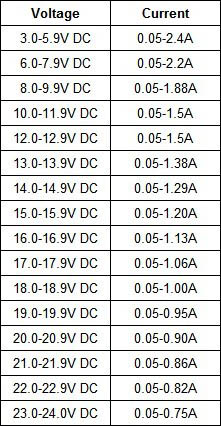

Output Tables:
Product Tables :

Machanical SPEC:

Packing & Shipping:
